Product Overview

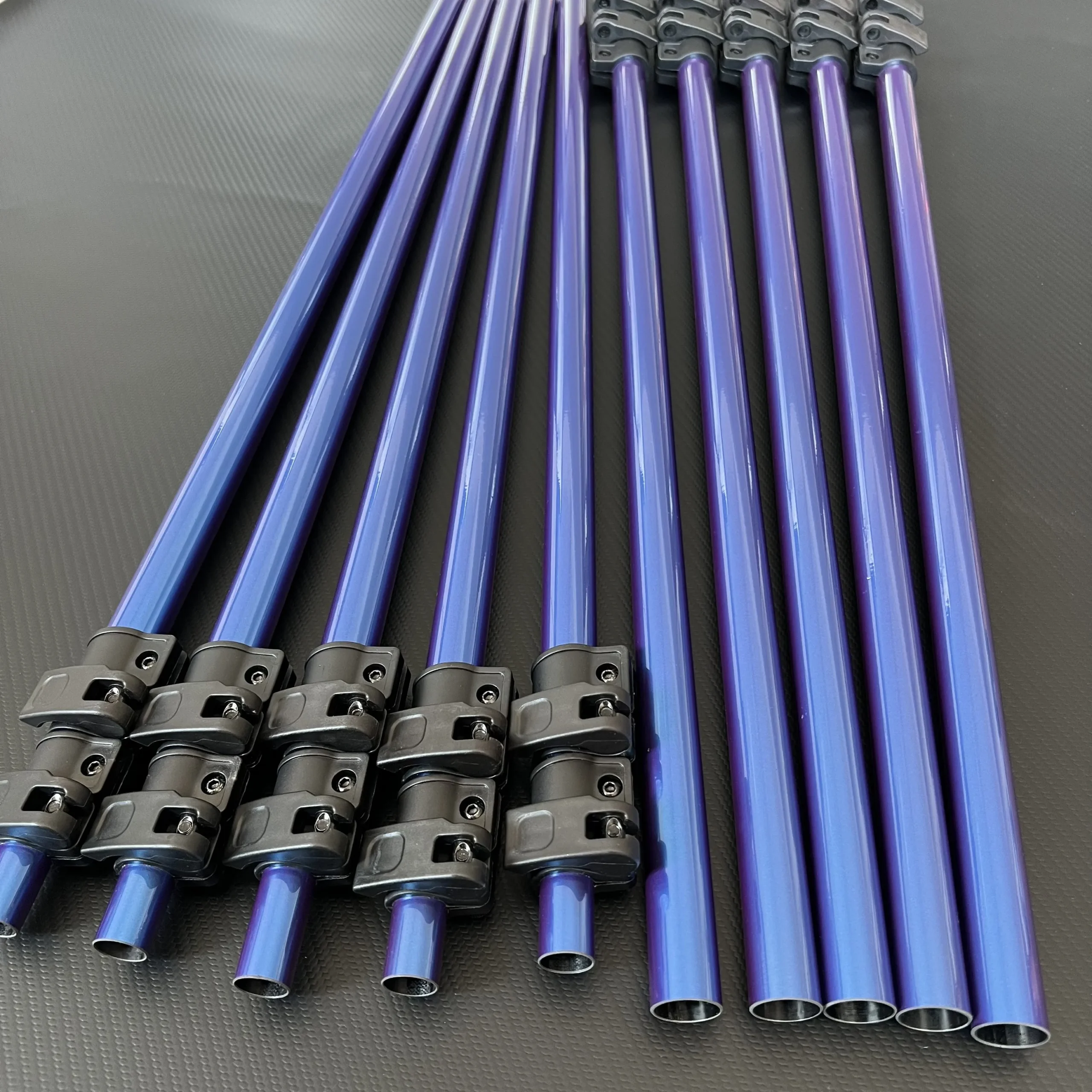

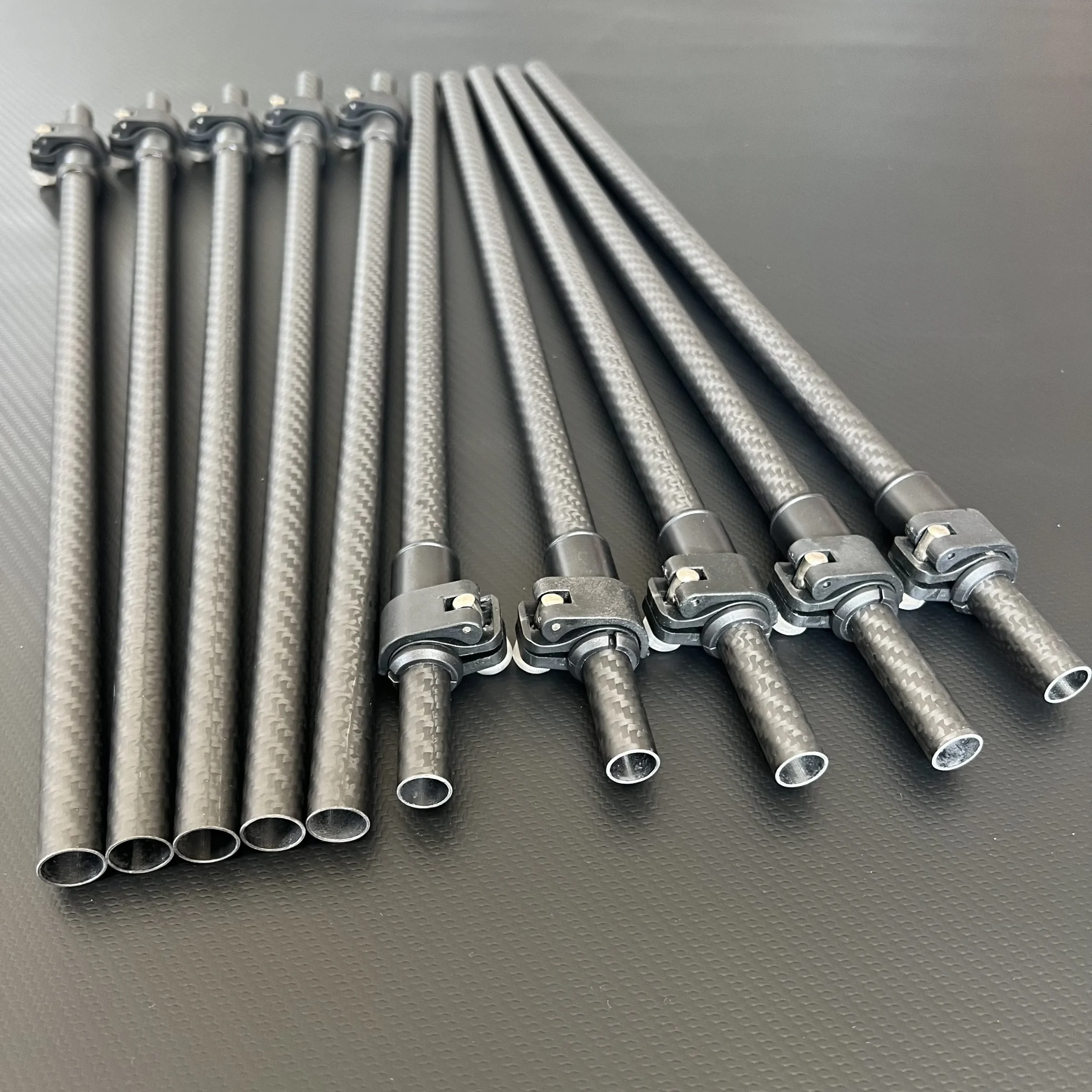

The Nylon Clamp Series is engineered for high-frequency adjustment environments where speed and tactile feedback are essential. Utilizing a robust external flip-lock mechanism, these telescopic poles allow for near-instantaneous section deployment and securing. Constructed from high-impact reinforced nylon and paired with our premium carbon fiber tubing, this locking system provides a high-clamping force that is ideal for heavy-duty industrial and outdoor professional use.
Engineering & Mechanical Features

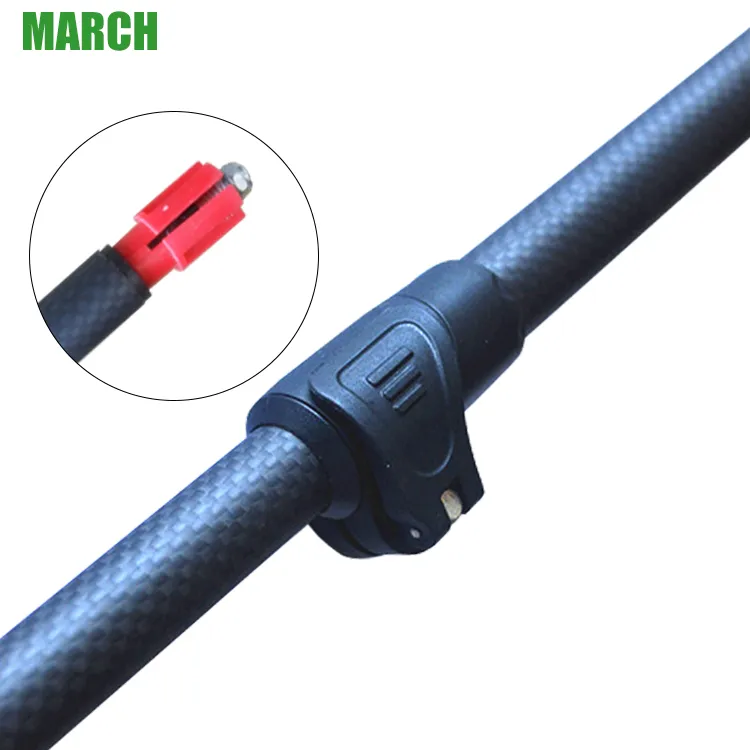

- Rapid-Action Flip Locks: The cam-lever design enables one-handed operation, allowing users to extend or retract sections in seconds. The "snap" engagement provides clear tactile confirmation that the pole is securely locked.
- Non-Slip Compression Fit: The nylon clamps are precision-molded to match the outer diameter of our carbon fiber tubes, ensuring 360-degree contact. This uniform compression prevents section slippage even under significant vertical pressure.
- Adjustable Tension: Each clamp is equipped with a stainless steel tension screw, allowing operators to fine-tune the clamping force to compensate for environmental factors or long-term wear.
- Rugged Material Composition: The locks are manufactured from glass-reinforced polyamide (nylon), offering exceptional resistance to UV radiation, extreme temperatures, and chemical exposure in agricultural or marine settings.
Core Applications
- Commercial Maintenance: High-reach window cleaning, pressure washing extensions, and solar panel maintenance tools.
- Industrial Inspection: Telescopic masts for thermal imaging, bridge inspection, and high-altitude sensor deployment.
- Photography & Broadcasting: Professional boom poles, overhead camera supports, and portable lighting arrays.
- Agricultural Harvesting: Lightweight, adjustable poles for fruit picking and forestry management.
Technical Specifications
- Tube Material: 100% Carbon Fiber (High-Modulus options available).
- Clamp Material: High-Impact Glass-Reinforced Nylon.
- Hardware: Grade 304 Stainless Steel pivot pins and screws.
- Available Diameters: Optimized for our standard 2mm-increment nesting tubes (e.g., 20mm to 34mm transitions).
