Overview

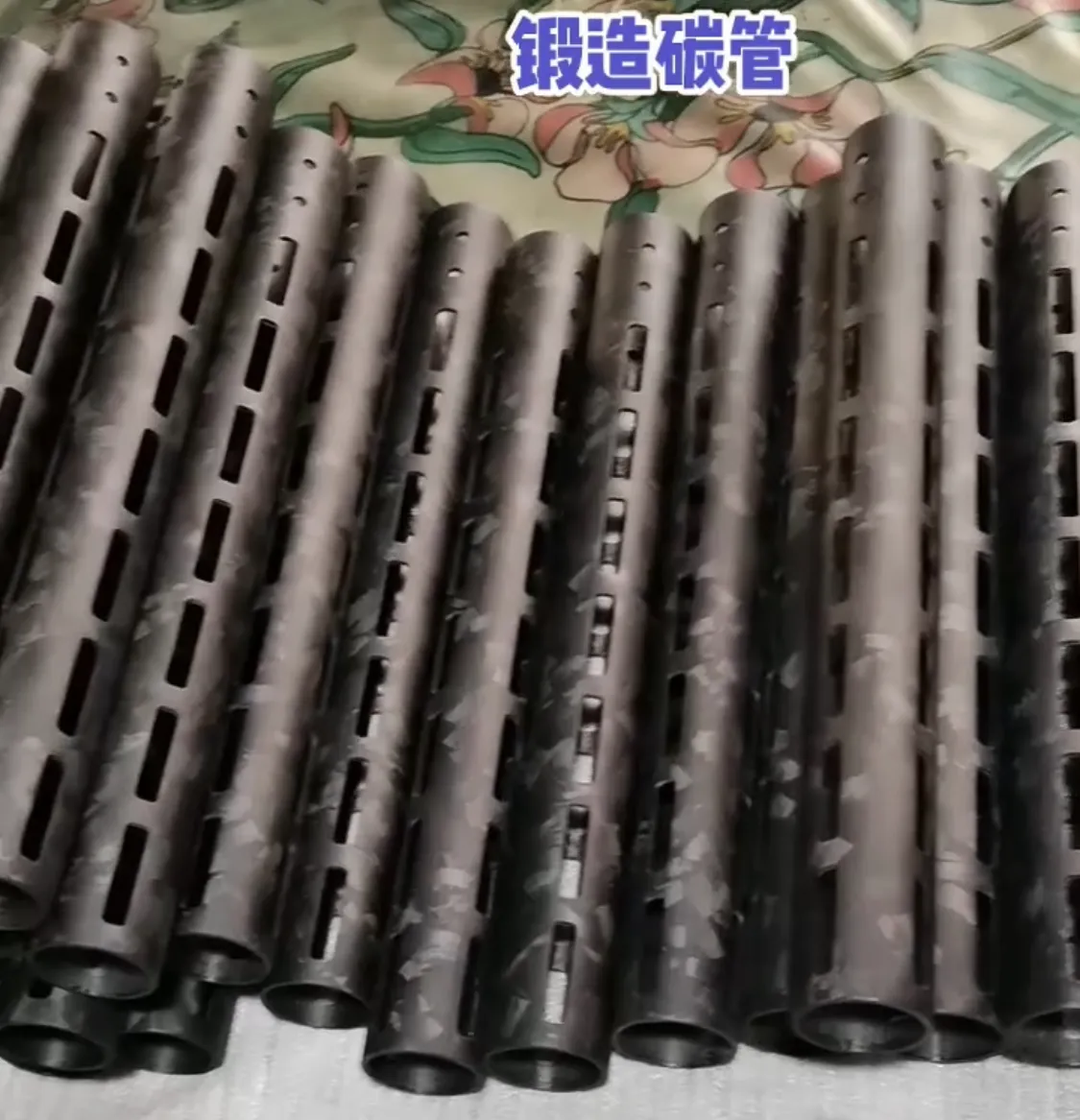

Beyond providing premium raw tubing, we offer advanced High Precision CNC Machining services to deliver ready-to-assemble components tailored to your exact engineering specifications. Carbon fiber is a notoriously difficult material to machine without splintering or delamination; however, our specialized CNC centers are equipped with diamond-coated tooling and high-speed spindles designed specifically for composite materials. As shown in the product visual, we achieve clean, burr-free geometries—including complex rectangular cutouts and precision-drilled mounting holes—ensuring perfect mechanical synchronization with your hardware.
Technical Capabilities
- Complex Geometry Processing: Capable of executing intricate milling patterns, slots, pockets, and multi-diameter holes on cylindrical or flat composite surfaces.
- Ultra-Tight Tolerances: We maintain sub-millimeter precision ($±0.05\text{mm}$ to $±0.1\text{mm}$), ensuring that every machined interface fits seamlessly with sensors, clamps, or internal electronics.
- Zero-Defect Edge Quality: Our optimized machining parameters prevent "fraying" or "chipping" of the carbon fiber weave, preserving both the structural integrity and the premium 3K aesthetic of the component.
- Integrated Hardware Installation: Following CNC processing, we can provide secondary services such as the installation of threaded inserts, rivets, or custom metal collars.
Core Applications
- UAV & Aerospace: Weight-optimized airframes requiring precision mounting points for motors, avionics, and wiring harnesses.
- Industrial Automation: Sensor-integrated robotic arms and specialized end-effectors with internal cable routing ports.
- Scientific Instrumentation: Precision-slotted optical tubes and protective housings for high-frequency telecommunication arrays.
- Medical Equipment: Lightweight structural frames for diagnostic imaging machines requiring non-magnetic, precision-machined interfaces.
Machining Specifications
- Materials: Carbon Fiber (3K/UD), Kevlar Hybrids, and Glass Fiber composites.
- Processing Range: Tubes from 5mm to 300mm in diameter; lengths up to 2500mm.
- Hole Geometries: Circular, Square, Oblong, and Counter-sunk profiles.
